Dual Chamber Seed Germinator Manufacturer in India for Seed Testing
Seed Germinator Dual Chamber Specification

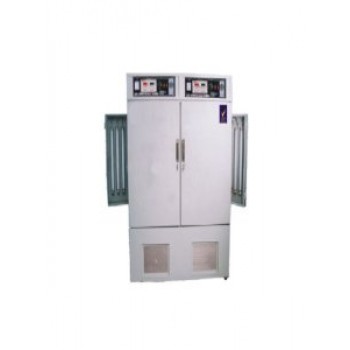

Obromax Seed Germinator (Dual Chamber) useful for seed testing, biological studies, forestry research works etc. Suitable for conducting various experiments on seed germinators. different environmental conditions can be created and controlled as per requirement. These Test Chambers have been constrcuted of Double walled construction, the inner one is made of anodized aluminum or highly polished stainles steel sheet and the outer wall is made of thick mild sheet of steel duly finished in stoving enamel paint.Seed Germinator (Dual Chamber)
Model No : ATI - 123
Technical Matrix
| Chamber Construction | Dual Chamber |
| Temperature Range | 5°C to +50 °C |
| Temperature Accuracy | ± 1oC or better |
| Temperature Sensor | PT 100 |
| Humidity Range | Ambient to 90% RH ( As per requirements) |
| Humidity Accuracy | ± 3% |
| Humidity Sensor | Capacitive |
| Illumination | Optional Light / Dark control system comprising of fluorescent lights & control system. |
| Test Cycles | Control system with memory to preset test cycles as per requirements. |
| Heat / Cool Rates | Heat/Cool rates customized to meet user requirements. |
| Display | LED/LCD display. |
| Controller | Microprocessor/Microcontroller based Controller. |
| Data memory & print | Optional data memory & print interface or added with printer facility. |
| Alarms | Customized alarm system to warn various parameters. |
| Seed Germinator Construction | |
| Outer Panels | Outer panels are made of GI coated/ CPRCA sheet/Stainless Steel |
| Interior Panels | Interior panels are made of Stainless Steel |
| Door | Standard hinged door with Double gasket seal between the door and the cabinet increases system efficiency. |
| Insulation | Polyurethane foam insulation with a thickness of 50mm |
| Shelves/Trays | Wire Mesh Stainless steel Trays. (As per requirements). Stainless steel trays lift out for easy cleaning. |
| Reservoir drain | Recessed Reservoir drain, with convenient drain hose, is easily accessible and a screened based prevents rodent infestation. |
| Castors | Castors for minimal effort mobility |
| Seed Germinator Heat / Refrigeration system | |
| Heating system | Level, constant heat is continually maintained through a water media, by specially designed high purity magnesium oxide and helically wound nickel-chrome wire heating elements. Elements are totally enclosed for efficient heat transfer and operator safety. The warm air is evenly distributed throughout the chamber through efficient motor fans ensuring a very good temperature sensitivity. |
| Refrigeration system | OBROMAX superior refrigeration system with optional Backup refrigeration system. Uniform refrigeration is maintained through the use of air-cooled, high torque, hermetically sealed condensing unit. High quality cooling system components include: efficient fan circulation evaporator coil with thermal expansion valve, moisture-liquid indicator, filter drier, heat exchanger, and pressure control valve. All refrigerant lines are copper and fully insulated. |
| Compressor | Heavy duty Air-cooled compressor. The compressor is distinguished by its excellent performance, low noise level (<60dB) and minimal vibration. |
| Condenser | Highly efficient condenser with automatic condensate evaporating system. |
| Evaporator | Internal evaporator system Forced draught |
| Refrigerant | Non-CFC/HCFC environmental friendly based on compressor capacity. |
| Air Circulation | Forced air circulation to maintain chamber uniformity. |
| Seed Germinator Air-Humidity Circulation | |
| Humidity System | Unique forced air circulation design maintains an even, continuous, moist airflow throughout the cabinet. Perforated trays further enhance even humidity distribution to testing samples. Self-contained stainless steel water reservoir in each chamber assures a relative humidity of 90%. Temperature variation between trays is ±0.5° C, top to bottom. |
| Seed Germinator Control System | |
| Control System Standard | The standard control system consists of Micro-processor based independent temperature controllers for Heat, Cool & Humidity mode with LED/LCD display. The illumination is controlled through solid state cyclic timer to control the photoperiodic cycle of the chamber. Optional alarm system for various parameters. |
| Control System Advanced | The advanced control system features robust PID Controllers with process control settings or micro-controller/Micro-processor based Control system. The control system has various optional features such as LED/ LCD Display Printer Report Program, Data Acquisition Program, Timer, Light control, Adjustable alarm limits, and Process cycle settings etc. customized to meet end user requirements. |
| Working Chamber Size | L-555xB-605xH-910 mm each chamber |
| Wire Mesh Trays | 12 Nos. each chamber |
| Power Supply | 220 volts,50 Hz |
