Scientific and Laboratory Equipment Manufacturer in India
Rectangular Manufacturer in India for Laboratory Purpose
Rectangualr Muffle Furnace Specification
Muffle Furnace is primarily used in laboratories and chemical industries. These equipment’s are used for hardening, reheating, annealing and the outer walls of these equipment’s are made up of thick milled steel duly painted. Rectangualr Muffle Furnace are light in weight with the maximum temperature of 1000 degree Celsius and the working temperature is up to 900 degrees Celsius. Also, they are embedded with a heater which runs around the entire chamber and comprise of communication ports, cables and a window based software with inbuilt data recording capacity.working chamber
| Size Inside Chamber (WXDXH) | Load |
| 100 X100 X225 mm | 1.0 KW |
| 125 X125X 250mm | 2.0 KW |
| 150X150X300 mm | 2.5 KW |
| 200X200X300 mm | 3.5 KW |

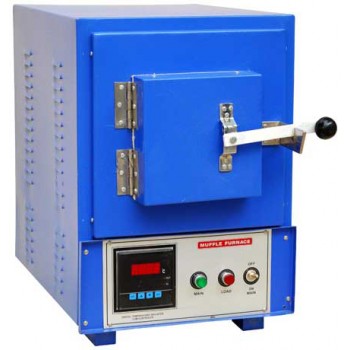

Muffle Furnace Rectangular
Model No : ATI-118-A
Technical Matrix
| Temperature | Working 900oC & Maximum 1000oC |
| Controller | Microprocessor based PID Controller |
| Accuracy | ±1oC |
| Display | LED / LCD |
| Sensor | K Type |
| Heating Elements | Kanthal Wire |
| Inner Chamber | Ceramic Wool |
| Outer Chamber | Mild Steel duly power coated |
| Power Supply | 220-230V, Single Phase, 50/60 Hz |
