Incinerator Manufacturer in India to for Bio-Medical Waste Treatment
Incinerator Specification
OBROMAX Incinerator is the most effective equipment for Bio-Medical Waste Treatment for every Poultry Farms, Blood Bank, small Nursing Home, Veterinary Hospital. Incinerator is designed effectively for safe and quick disposal. These Miscellaneous Equipment have been constructed of double wall, duly insulated with ceramic wool/bricks of high efficiency . Easy to install & operate and extremely durable equipment.
Capacities| Size | Chamber Size | Rating | Temperature |
| 2 Kg. | 12”X12”X12” (Upper) 12”X12”X12” (Lower) | 3 Kw 18Kw | 500oC 1000oC |
| 3 Kg. | 12”X12”X18” (Upper) 12”X12”X18” (Lower) | 4.5 Kw 12Kw | 500oC 1000oC |
| 5 Kg. | 12”X12”X24” (Upper) 12”X12”X24” (Lower) | 6 Kw 12Kw | 500oC 1000oC |

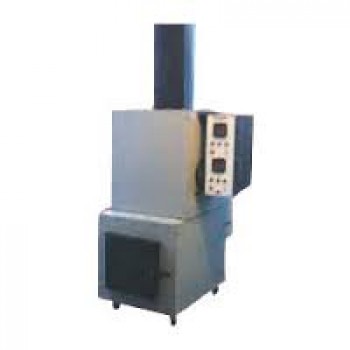

Incinerator
Model No : ATI-180
Technical Matrix
| Construction | Combustion chamber is well insulated and has high temperature safe dozing and exhaust system. It has long and safe treatment of flew gases for safe disposal through long stack. |
| Front Loading Type | It is portable in nature, which can easily place in a small space in a corner of building. |
| Consisting of Dual Chamber | Works on thermal destruction using controlled combustion chamber; combustion is controlled and provides enough heat to destroy the waste into disposable state. |
| Door | Fitted with hinges & handle for proper sealing to avoid heat loss. |
| Primary/ Burning Temperature | 500oc |
| Secondary Temperature | 1000oc |
| Portable | Whole unit is mounted on sturdy wheels |
| Digital Temperature Controller cum Indicators | 2 Nos. |
| Main Line Indicator | "Red color" neon light will glow 'ON' shows that the current is coming to the oven |
| Load Indicator | "Green color" neon light Glows when supply to heaters are 'ON'. |
| Rotary Switches | To start the machine |
| M.C.B | for safety |
| Element Of Primary Chamber | Made of A-1 kanthal wire (14 gauge) |
| Element Of Secondary Chamber | Made of A-1 kanthal wire (17 gauge) |
| Insulation | Strong insulation is done with combination of insulating bricks & silicon fiber insulating blanket to avoid any heat loss. |
| Power Supply | 220/230 volts A.C. |
