Salt Spray Chamber Manufacturer in India used for Corrosion

Salt Spray Chambers Specification

Salt Spray Chambers are equipment that are popularly used for corrosion method, used to check to corrosion resistance of materials and surface coatings. The materials to be tested in the chambers are usually metallic and are finished with a surface coating to further provide a degree of corrosion protection to the underlying metal. These Test Chambers are easy to clean and are manufactured and supplied in the market by OBROMAX, and are ISO 9001:2008, ISO 13845:2016,CE,GMP certified.Not only this, salt spray chambers are also incorporated with the function to refill the water automatically whenever the water level is insufficient or not up to the mark.

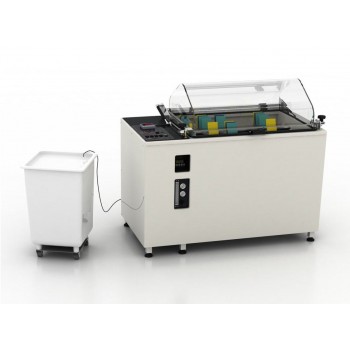

Salt Spray Chamber

Model No : ATI-198

Technical Matrix
Temperature range Ambient+5 to 60 degree C
Temperature Accuracy + 1 degree C or better
Temperature Control Digital programmable temperature controller cum indicator with PT 100 sensor
Material Inside Stainless steel main body grade 316
Outside Powder coated with transparent lid (toughened glass) to observe sample under test
Air Regulator Moisture cum oil filter and air regulator ranging from 0 to 30 psi is provided
Pressure gauge Calibrated pressure gauge is provided for measuring inlet pressure
Atomizer Provided for reliable atomizing
  Panel Panel is provided with the following:
  • Solid State Digital Programmable Temperature indicator cum controllers with auto-cut off facility of the main chamber and the reservoir.
  • Digital Preset Timer with Memory backup and automatic shut off after pre-set duration for
       setting test duration up to 999 Hrs.
  • Mounted Pressure gauge; regulator value and air filter.
Distillation Unit For producing distilled water inhouse (Optional)
pH meter Table top model (Optional)
Fog collection unit To check calibration i.e 1-2 ml/hour
Heating Elements ISI Marked
Glass Wool Insulation 75 mm
Structure Water Proof
Electrical Requirement Single phase 220 V, 50 Hz 3 KW approx.
