Humidity & Temperature Controlled Cabinet Manufacturer in India

Humidity & Temperature Controlled Cabinet Specification

These humidity and temperature controlled cabinet are best suited for carrying out different control tests under controlled humidity and temperature condition. Also they are designed for conducting various types of research experiments in order to check the quality of different materials such as cement motors, electrical fittings, its circuits and components, types of cloth and paper under controlled temperature and humidity conditions.
The cabinet of these Test Chamber Equipment are robustly constructed as the outer body is made up of mild steel sheet duly power coated and the inner chamber is made up of stainless steel. The equipment is also provided with castor wheels for easy mobility. However, they are highly reliable and versatile as well.
working chamber

Inner Dimension (mm)

Volume (liter)

455X455X710 mm


605X605X605 mm


605X605X910 mm

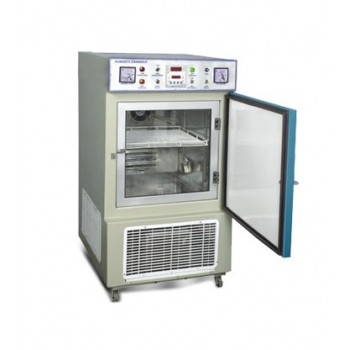

Humidity & Temperature Controlled Cabinet

Model No :

Technical Matrix
Temperature Range Ambient+5 to 60 degree C / 5 to 60oC
Temperature Accuracy + 1oC or better
Temperature uniformity + 1oC or better
Temperature Control Microprocessor based PID Controller
Audio Visual Alarm Visual and Acoustic
Temperature Sensor PT 100
Display LED / LCD
Humidity Range 30% to 95% Relative Humidity (As per graph)
Humidity Accuracy + 3% Relative humidity
Humidity Sensor Capacitive
Water Reservoir 22 ltrs
Inner wall of chamber Stainless steel SS 304
Outer wall of chamber Powder coated cold rolled sheet
Door Inner SS 304 & Outer MS
Shelves (Wire Mesh) Stainless steel
Air Circulation Fan Inbuilt
Inspection Window Inbuilt
Insulation Glass Wool / PUF
Compressor Single Stage
Cooling CFC free
Refrigerant R 404a
Castors Lockable
Computer Interface (RS 232) Optional
Power Supply 220-230V, Single Phase
