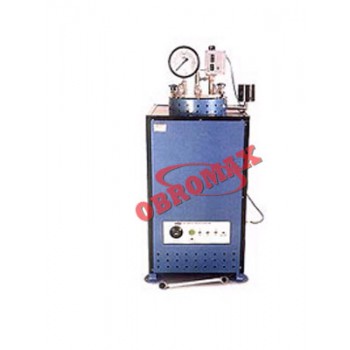

Vertical Cement Autoclave Manufacturer and Supplier in India
Cement Autoclave Specification
The Cement Autoclave is perfect way to pick up the pace of sound on cement or the autoclave growth test, need to be balanced steam pressure with the stable temperature. It contains a cylinder made up of stainless steel with a security lid, accumulated on a solid frame, covered in a heat protecting metal device. The added control unit contains a pressure regulator, powerful switches and direct lamps for calculating the power heating units. Come with a test bar holder, additional rack to put samples above water level in the chamber. It is shaped in vertical position.
Autoclave is a Sterilization Equipment designed for sound test on cement contains cylindrical vessel in steel that holds 10 samples of 25x25x250mm. This vessel is thermally protected and covered with a sheet. Heating is done through two barriers. The control boards contain a pressure device with controller included thermostat and on/off switches for moderate setting the autoclave is fixed with security tap.Cement Autoclave
Model No : ATI-107
| Model | ATI-107 |
| System | Vertical type |
| Temp. range |
224 °C max 0°C ~ +60°C 0°C ~ +60°C |
| Temp. constancy |
± 1°C ±0.1°C |
| Temp. uniformity |
±1.0°C (at 224°C) ±1.5°C (at 37°C) |
| Inside material | SS-304 |
| Temp. control | PID |
| Temp. sensor | PT -100 |
| Temp. heat-up rate | Ambient +5°C ~ 210°C (within 35 min) |
| Heater |
3 kw 1000W |
| Safety devices | Short circuit breaker, overheat protector |
| Inside dimensions (mm) | Dia-6” x Height-18” |
| Maximum pressure | 300 psi |
| Stand | Made of SS 304 |
| Pressure cut off | For high pressure safety |
| Safety valve | It provide safety from over pressure |
| Safety | Double safety valve protection |
| Insulation | 75 mm |
| Holding Capacity | 10 specimens of 25 x 25 x 250mm |
| Heating Elements | ISI Marked |
| Power Supply | Power Supply: 220-230V, Single Phase |
