Scientific and Laboratory Equipment Manufacturer in India

Bacteriological Incubator manufacturer in India used for Crystallization

Bacteriological Incubators Specification

Bacteriological Incubators are primarily used in drying of slides, tissue culture, crystallization and microbiological incubation. All these ovens n incubators are produced with double walled construction and the inner chamber is made up of stainless steel. The shelves of these equipment's are also made up of stainless steel and are adjustable to set a certain height. The heater incorporated in the device has a high grade imported nichrome wire inserted and this wire is placed at the bottom for uniform temperature all over the space. The LED based smart controller in the equipment is used to control temperature and LED based display is provided with an audio-visual alarm as well.
working chamber
 Dimensions (LxBxH) Volume (Ltr)
300 X 300 X300 mm 28
355 x 355 x 355 mm 45
455 x 455 x 455 mm 95
455 x 455 x 605 mm 125
605 x 605 x 605 mm 224
605 x 455 x 910 mm 252
605 x 605 x 910 mm 336

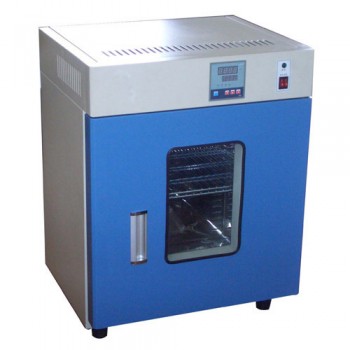

Bacteriological Incubator

Model No : ATI-117

Technical Matrix:
Construction Inner SS-304
Outer Powder coated MS
Door Inner SS-304 and outer MS
Temperature Range Ambient + 5 to 60 degree C
Deviation + 1 degree C or better
Readability + 1 degree C or better
Controller PID controller
Sensor J type
Display LED / LCD
Adjustable alarm limits Visual and acoustic
Glass Wool Insulation 75 mm
Air Circulation Fan Inbuilt
Heating Elements ISI Marked
Inspection Window in door Inbuilt
Wire Mesh Shelves 1/2/3 (depends on the working chamber size)
Timer 1-999  hours Optional
Serial Data Port Optional
Power consumption 230 V, 50 Hz
