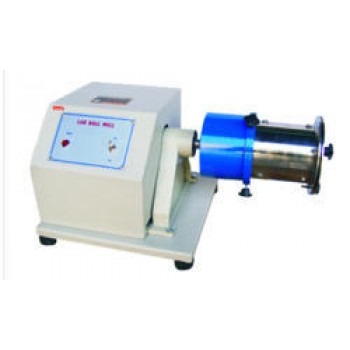

Laboratory Ball Mill Manufacturer in India used for Colloidal Grinding

Ball Mill Specification

All Ball Mill is primarily used to grind and blend materials for the use in mineral dressing processes, ceramics and paints. These mills are also used for colloidal grinding and offers the energy required for alloying. All these Miscellaneous Equipment are supplied in a reasonable price range and are extensively used in various fields of applications such as agriculture, biology, construction materials, pharmaceuticals and many more. Laboratory Ball Mills are manufactured and supplied by OBROMAX, an ISO 9001:2008, ISO 13845:2016,CE,GMP certified company.


Model No : ATI – 163

Technical Matrix
Construction Stainless Steel/ Aluminium  Jar
Grinding Jar Sizes 1 Kg  Jar
2 Kg  Jar
5 Kg Jar
10 kg Jar
RPM Range 80 RPM
Motor 1¼ FHP
Field of application Agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment, glass / ceramics, medicine / pharmaceuticals, mineralogy / metallurgy
Feed material Soft, hard, brittle, fibrous - dry or wet
Size reduction principle Impact, friction
Material feed size < 10 mm
Final fineness < 10 µm, for colloidal grinding < 1 µm
No. of grinding stations 1oC minimum & maximum 10oC with
Type of grinding jars "Comfort"
Material of grinding tools Hardened steel, stainless steel
Interval operation Yes, with direction reversal
Drive FHP Motor
Supplied with  Grinding steel balls for mixing and grinding particularly soft powder
Power Supply 220-230 V, AC Supply
