Manufacturer of Oil High Temperature used for Oxidation Stability Test

High Temperature Oil Bath Specification

High Temperature Oil Bath are used in vast range of application in oxidation stability test, greases or controlling temperature having high thermal efficiency. Also, these Lab Water Solutions are mostly used in laboratories, pharmaceutical or petroleum industries as well. The sturdy construction, the temperature range, heating protection, and its stirring speed makes this equipment a smart choice for a smart lab. Also, these devices are equipped with high performance controller for high precision and a wider temperature range.

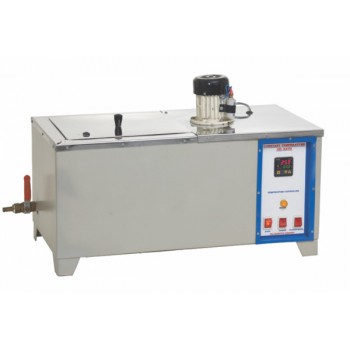

Oil bath High Temperature

Model No : ATI- 137

Technical Matrix
Inner Chamber Stainless Steel  (SS 304)
Outer Chamber M.S. Sheet Duly Powder Coated
Insulation Glass Wool 50 mm in Five Side
Temperature Range 50oc to 250oc
Temperature Accuracy ±1oc  or better
Temperature controlled PID Controller
Display LED/LCD
Temperature Sensor J type
Provided with High speed stirrer with speed regulator
Control panel provided on the side  two neon lights and an ON/OFF switch
Shelves Perforated
Glass Wool Insulation 75 mm
Power Supply 220/230, Single Phase AC Supply
