Circulating Water Bath Manufacturers used for Research & Quality Control

Circulating Water Bath Specification

Circulating water Baths are primarily used for research and quality control applications. These Lab Water Solutions are easy to use, appropriate, rugged and safe. Also, these equipment’s comprise of touch pad controls and constant digital water baths are perfect for conducting host of applications such as bacteriological examinations, food processing and microbiology as well. Easy design with compact operation makes these units finest choice in applications where removal of heat as close to ambient temperatures is required.

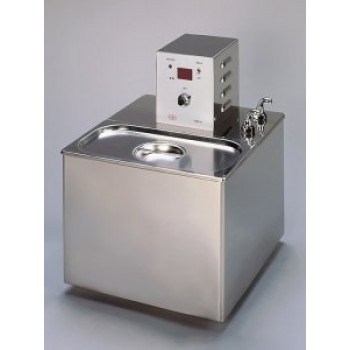

Circulating Water Bath

Model No : ATI-138

Technical Matrix
Inner Chamber Stainless Steel
Outer Chamber M.S. Sheet Duly Powder Coated
Temperature Controller Thermostatically Control / PID Controller
Temperature Range Ambient +5 to 90 deg C
Temperature Accuracy ± 5 deg C /  ± 1 deg C or better (With PID)
Temperature Sensor PT 100 (with PID)
Display LED/LCD (With PID)
Glass Wool Insulation 75 mm
Covered with Perforated S.S. Tray
Heating Elements Immersion type Heater (ISI Marked)
Stirrer Facility Inbuilt
Motor Capacity 1/20 HP
Provided with On/Off switch, indicator, cord plug, etc. Inbuilt
Inside bath size 8'’ x 9" x 10½’’  (Customization on Demand)
Cover at side of size 10'’x7'’ approx (Customization on Demand)
On/Off switch, indicator, cord plug, etc Yes
Power supply 220/230, Single Phase AC Supply
Volume 12 Litre
